| Toode | Masina mass, t | Maht, l | Maht kuhjaga, l | A, mm | B, mm | C, mm | Laius, mm | Kaal, kg | Silindrid |
|---|---|---|---|---|---|---|---|---|---|
| PB60H | ˂2 | 60 | 80 | 495 | 290 | 374 | 1000 | 85 | 1 (H) |
| PB80H | ˂3 | 80 | 100 | 495 | 290 | 374 | 1200 | 100 | 1 (H) |
| PB190H | ˂5 | 190 | 250 | 803 | 582 | 686 | 1200 | 240 | 2 (H) |
| PB240H | ˂6 | 240 | 300 | 803 | 582 | 686 | 1300 | 255 | 2 (H) |
| PB320H | ˂8 | 320 | 380 | 803 | 582 | 686 | 1500 | 285 | 2 (H) |
| Kaldenurk on 45 ° + 45 ° | |||||||||
| H - Horisontaal silindrid |

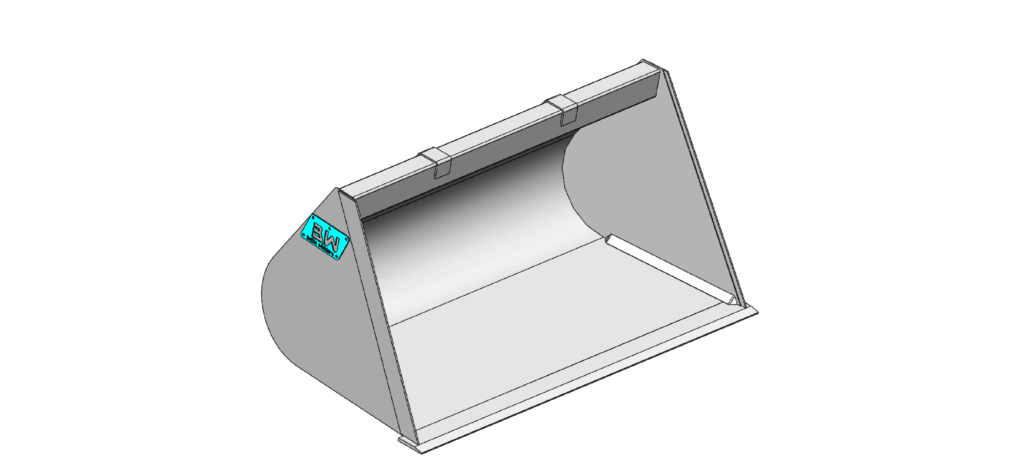

| Toode | Maht, l | Maht kuhjaga, l | A, mm | B, mm | Laius, mm | Kaal, kg |
|---|---|---|---|---|---|---|
| SN1100 | 1100 | 1400 | 1075 | 1050 | 1800 | 300 |

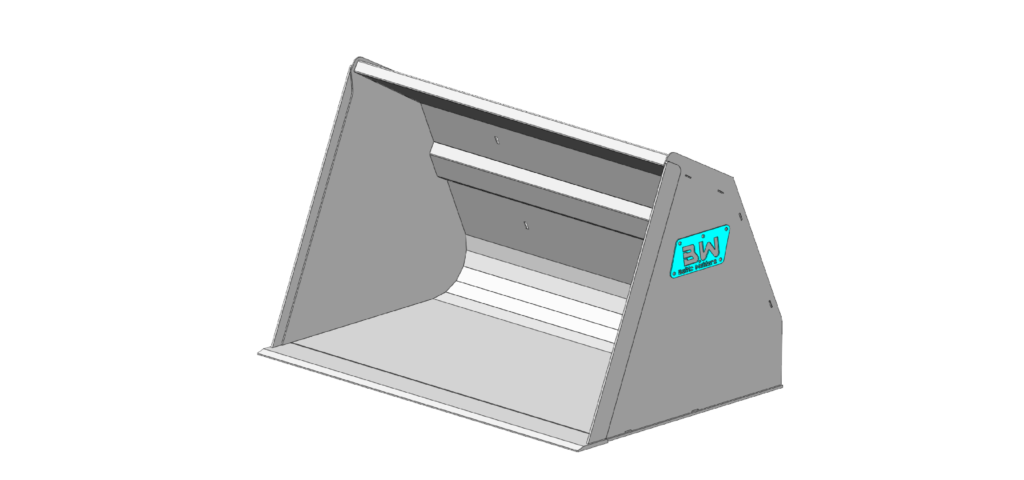

| SN1300 | 1300 | 1700 | 1075 | 1050 | 2100 | 340 |
| SN1500 | 1500 | 2000 | 1075 | 1050 | 2400 | 380 |
| Toode | Masina mass, t | Maht, l | Maht kuhjaga, l | A, mm | B, mm | C, mm | Laius, mm | Kaal, kg | Materjal |
|---|---|---|---|---|---|---|---|---|---|
| PB700HD | ˂16 | 700 | 1100 | 1385 | 868 | 1170 | 1800 | 650 | Täis Hardox |
| PB800HD | ˂18 | 800 | 1200 | 1385 | 868 | 1170 | 1950 | 740 | Täis Hardox |
| PB900HD | ˂20 | 900 | 1300 | 1385 | 868 | 1170 | 2100 | 850 | Täis Hardox |
| Toode | Masina mass, t | Maht, l | Maht kuhjaga, l | A, mm | B, mm | C, mm | Laius, mm | Laius 2, mm | Nurga kraadid | Kaal, kg |
|---|---|---|---|---|---|---|---|---|---|---|

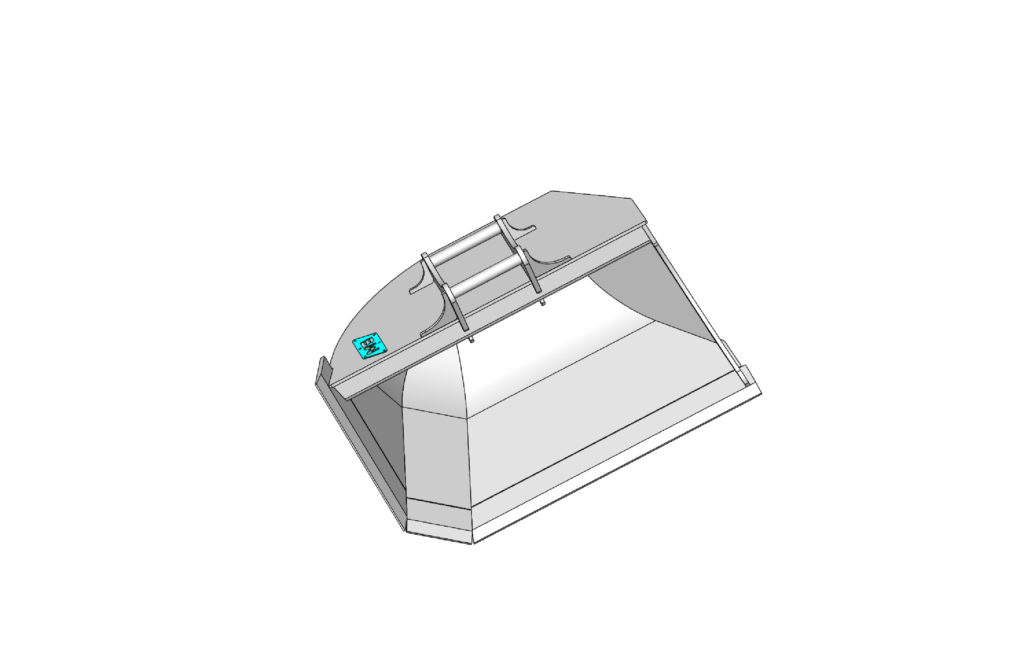

| RB1100V | ˂22 | 1100 | 1600 | 1600 | 950 | 1100 | 1900 | 400 | 2x35 | 1075 |
