Kaevekopad 1-8 tonnistele masinatele

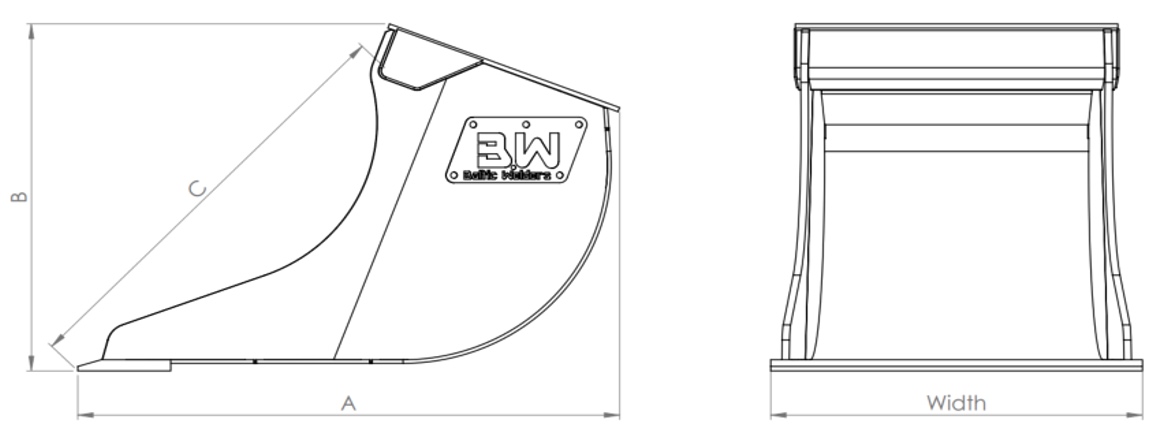

Toode	Masina mass, t	Maht, l	Maht kuhjaga, l	A, mm	B, mm	C, mm	Laius, mm	Kaal, kg	Hambad
DB35	˂1	35	55	596	397	469	480	35	-
DB35T	˂1	35	55	596	397	469	480	40	4
DB40	˂2	40	60	757	493	624	400	45	-
DB40T	˂2	40	60	757	493	624	400	50	3
DB60	˂2	60	80	757	493	624	500	50	-
DB60T	˂2	60	80	757	493	624	500	55	4
DB70	˂3	70	90	757	493	624	550	55	-
DB70T	˂3	70	90	757	493	624	550	60	4
DB80	˂3	80	100	757	493	624	600	60	-
DB80T	˂3	80	100	757	493	624	600	65	4
DB150	˂7	150	220	1166	784	992	600	160	-
DB150T	˂7	150	220	1166	784	992	600	180	4
DB200	˂7	200	270	1166	784	992	700	190	-
DB200T	˂7	200	270	1166	784	992	700	210	4
DB250	˂8	250	320	1166	784	992	800	220	-
DB250T	˂8	250	320	1166	784	992	800	240	4
